OpenGL 개요
1. Silicon Graphics 사에서 1992년 공개한 저수준 그래픽스 라이브러리
2. 크로노스 그룹(Khronos Group)이 개발 및 관리
3. 다양한 패키지 존재
- 임베디드 시스템 : 2003년 OpenGL ES (for Embedded Systems) 공개
- 웹 환경 : 2011년 WebGL
- 안전 중심 응용 : 2005년 OpenGL SC (for Safety Critical applications) 공개
4. OpenGL 공식 사이트
https://www.opengl.org/
OpenGL 구성 요소
구성요소 | 설명 |
GL OpenGL Core Library - gl.h opengl32.dll(dynamic linking library) |
• 렌더링 기능을 제공하는 기본 라이브러리 • 색상 설정, 정점 지정, 행렬 설정 등 수행 • gl Prefix로 시작함 glColor, glVertex, glTranslate, glRotate, … |
GLU OpenGL Utility Library - glu.h glu32.dll |
• 고수준의 그리는 함수들로 구성된 라이브러리 • 시점 설정, 도형 그리는 함수 • glu Prefix로 시작함 gluLookAt, gluPerspective, gluSphere… |
GLUT OpenGL Utility ToolKit |
•운영 체제와 상호 작용 기능을 제공하는 라이브러리 • 윈도우 조작, 마우스 연동, 키보드 연동 등 수행 • glut Prefix로 시작함 glutCreateWindow, glutMouseFunc, … |
GLAUX OpenGL Auxiliary Library - glaux.h (no dll file) |
플랫폼 독립적 윈도우 제어 기능 및 그리는 기능 등 포함한 라이브러리 |
OpenGL 실행을 위해서 기본적으로 GL, GLU, GLUT 3개의 프로그램이 있어야 한다.
Visual Studio 설치 시 GL, GLU는 설치되어 있으나, (확인 후 만약 없다면 visual studio 재설치 추천)
GLUT는 별도로 설치해야 한다.

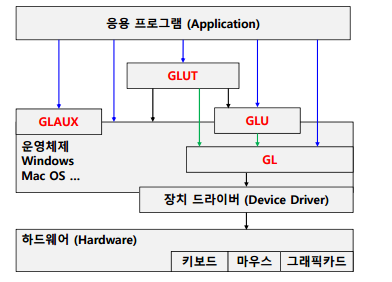

OpenGL API 계층 구조
1. OpenGL API 계층 구조
- 운영체제 관련 기능
FreeGLUT
- GLUT는 1998년 이후 Update도 없고 라이센스 문제가 있음.
- GLUT 라이센스 문제를 해결한 오픈 소스
- 공식 사이트 : https://freeglut.sourceforge.net/
-> 이 사이트에서 다운로드 가능.
http://www.transmissionzero.co.uk/software/freeglut-devel/
-> 이 사이트에서도 다운로드 가능 - MSVC Package
2023.04.05 - [수업] - 컴퓨터그래픽스 - 12. 그래픽스 기본 이론2
