모바일프로그래밍 - Fragment_Navigation(모바일 앱에서 화면 전환)

4/4 수업

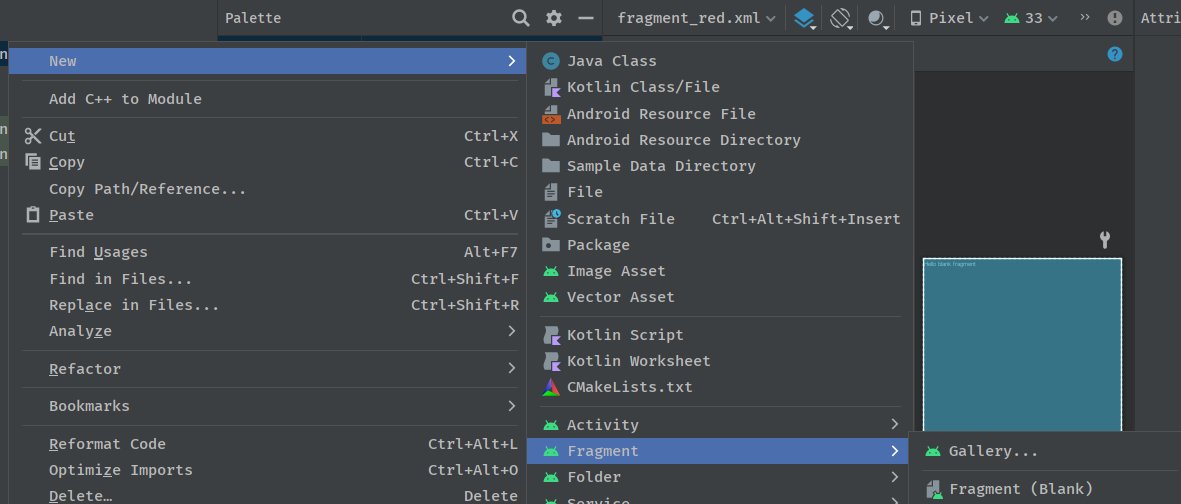

1. Fragment(Blank) 추가

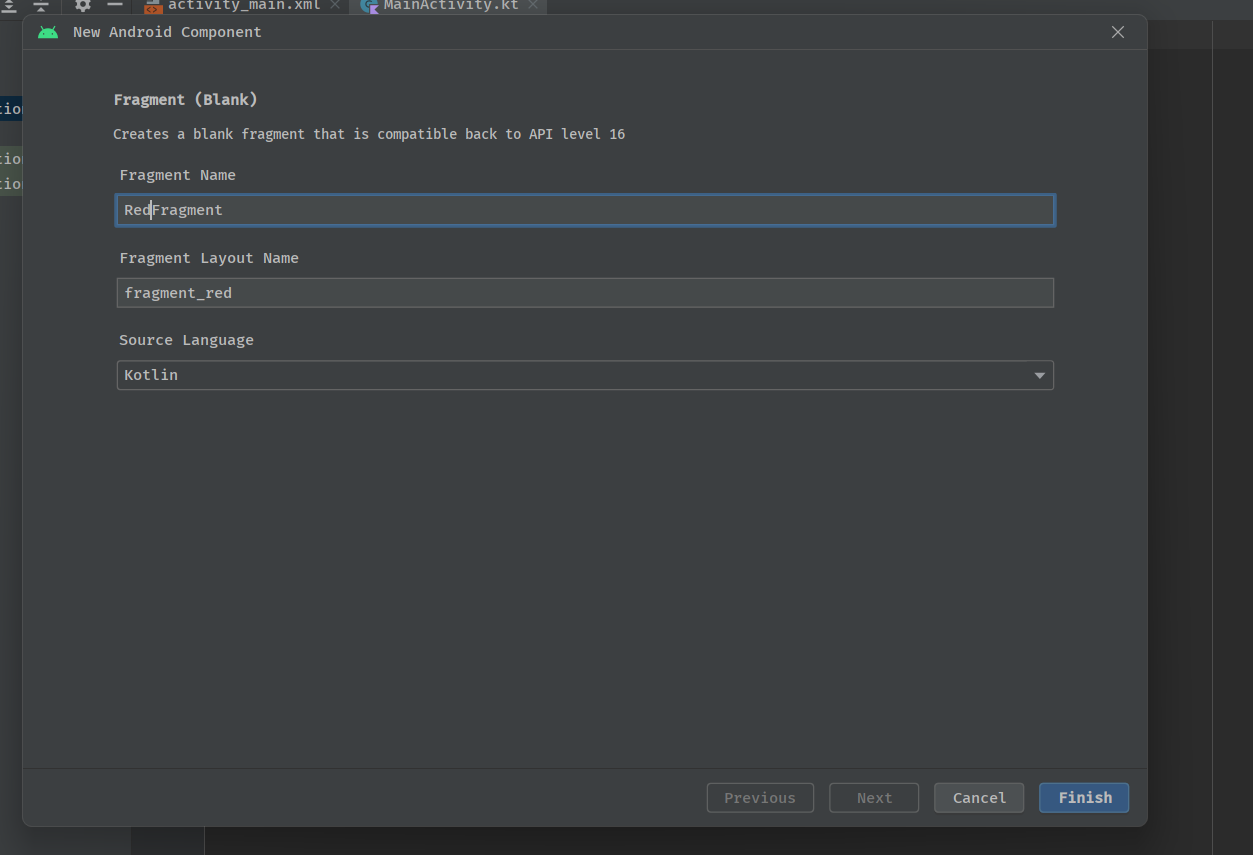

2. 이름 설정(Red, Blue, Green 3개 만들 예정)





RedFragment.kt

package com.example.fragment_navigation

import android.os.Bundle
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup

class RedFragment : Fragment() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

    }

    override fun onCreateView(
        inflater: LayoutInflater, container: ViewGroup?,
        savedInstanceState: Bundle?,
    ): View? {
        // Inflate the layout for this fragment
        val root: View = inflater.inflate(R.layout.fragment_red, container, false)


        return root
    }
    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)
    }

}



fragment_red.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/greenFrag"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#4C5EAF"
    tools:context=".RedFragment">

    <!-- TODO: Update blank fragment layout -->

    <TextView
        android:id="@+id/textView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="88dp"
        android:layout_marginTop="96dp"
        android:text="Blue Text"
        android:textSize="48sp"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>



Blue, Green도 똑같이 해준다.





Navigation 하기 위해 필요한 것

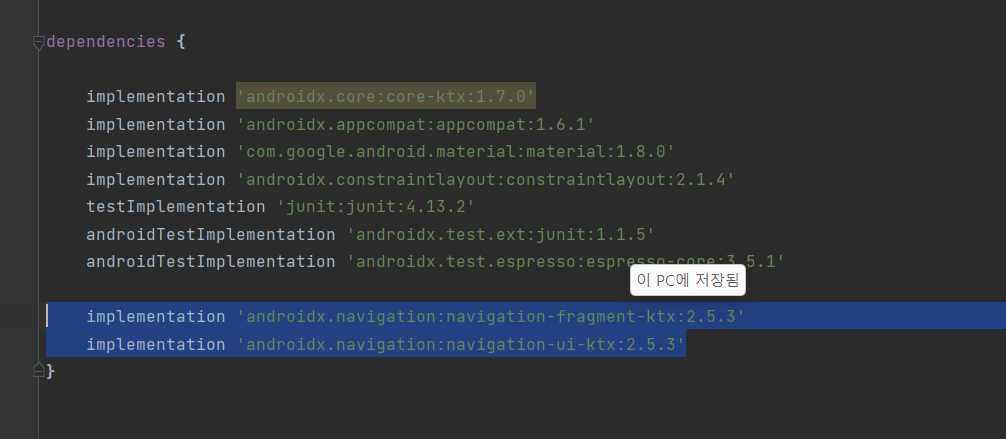

build.gradle(:app)에서

implementation 'androidx.navigation:navigation-fragment-ktx:2.5.3'
implementation 'androidx.navigation:navigation-ui-ktx:2.5.3'

이 코드를 넣어주고 Sync 해준다.

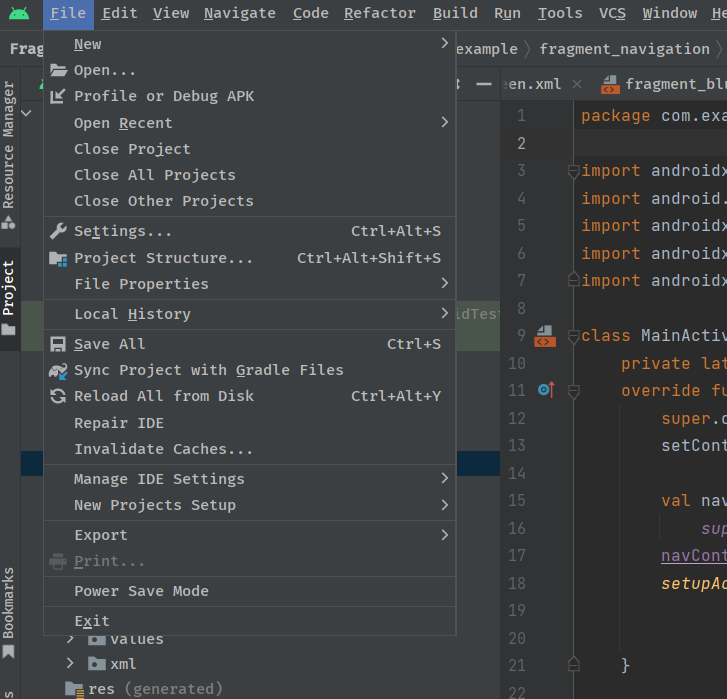

-- 만약 test_navi.xml이 로드가 안된다면, 아래에서 invalid caches를 선택해준다.

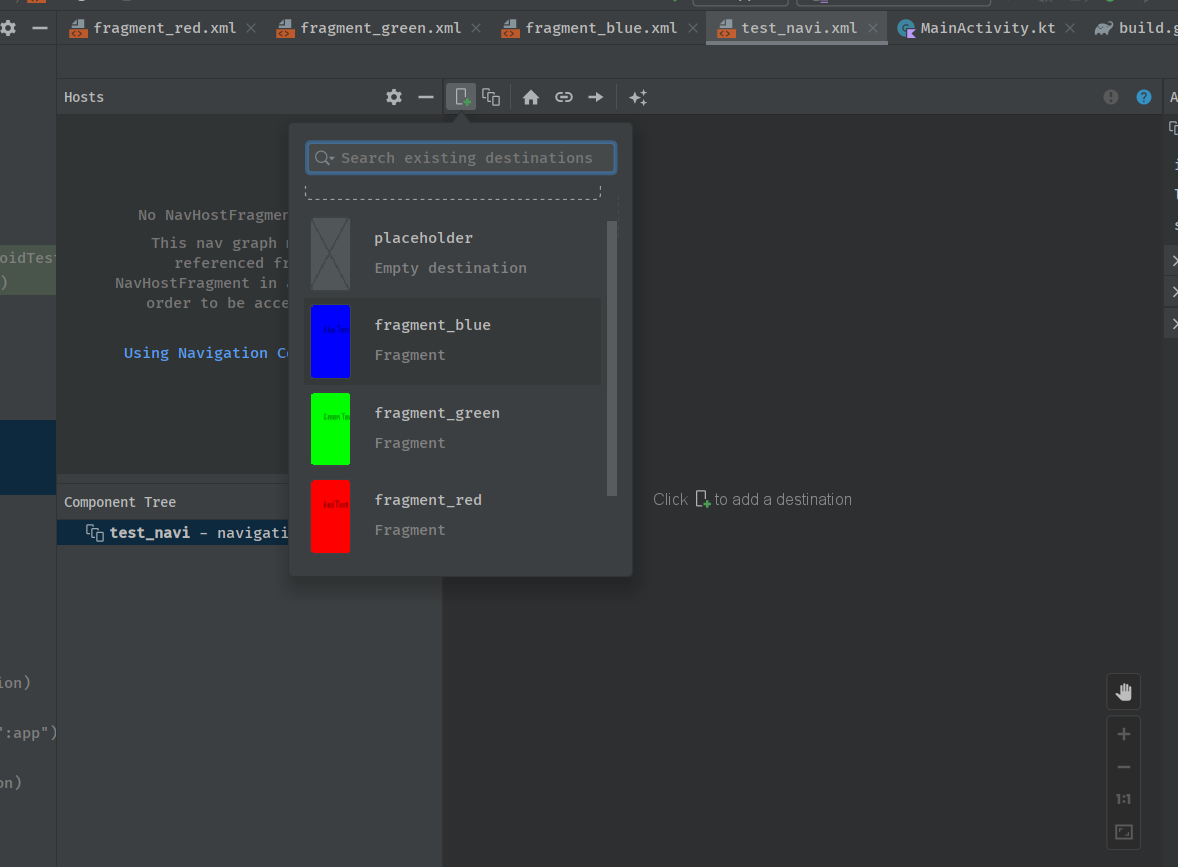

test_navi.xml에서 fragment 3개를 클릭해서 가져온다.

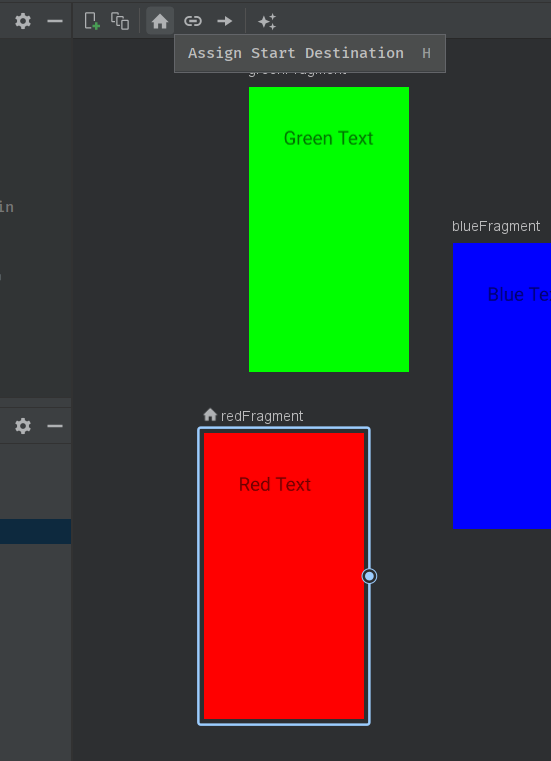

red를 home으로 설정

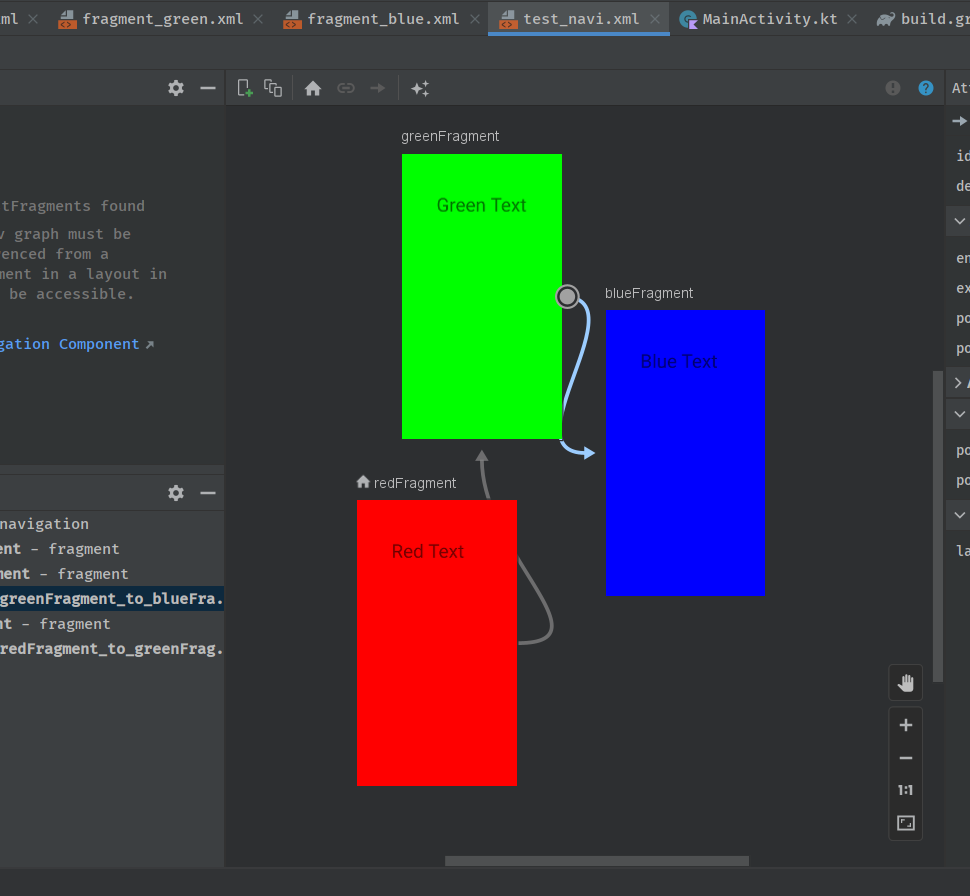

화살표 당겨서 red->green->blue 순으로 설정





MainActivity.kt

package com.example.fragment_navigation

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import androidx.navigation.NavController
import androidx.navigation.fragment.NavHostFragment
import androidx.navigation.ui.setupActionBarWithNavController

class MainActivity : AppCompatActivity() {
    private lateinit var navController: NavController
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        val navHostFragment =
            supportFragmentManager.findFragmentById(R.id.mainFrag) as NavHostFragment
        navController = navHostFragment.navController
        setupActionBarWithNavController(navController)


    }

    override fun onSupportNavigateUp(): Boolean {
        return navController.navigateUp() || super.onSupportNavigateUp()
    }
}



activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"

    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <androidx.fragment.app.FragmentContainerView
        android:id="@+id/mainFrag"
        android:name="androidx.navigation.fragment.NavHostFragment"

        android:layout_width="match_parent"
        android:layout_height="match_parent"

        app:defaultNavHost="true"
        app:layout_constraintBottom_toTopOf="parent"
        app:layout_constraintEnd_toStartOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:navGraph="@navigation/test_navi" />
</androidx.constraintlayout.widget.ConstraintLayout>
